- The C Series Manual Video Measuring Systems are ideal when quick measurements for quality control are needed. It provides you fast & accurate measurement of complex precision parts.
- The machine is able to work with touch probes & non/contact measuring sensors, which give more possibilities and efficiency to the series.
- Integrated machine, stable, safe and reliable.
- Quick AF, automatic adge.
- Wonderful programming and automatic measurement function.
- Grinding grade screw transmission, accurate position, high movement precision, high precision granite base, working platform, pillar, ensure machine stability.
- Three-axis servo closed-loop control system.
- Software is convenient in operation, and conforming to international Microscope Office software operating habits.

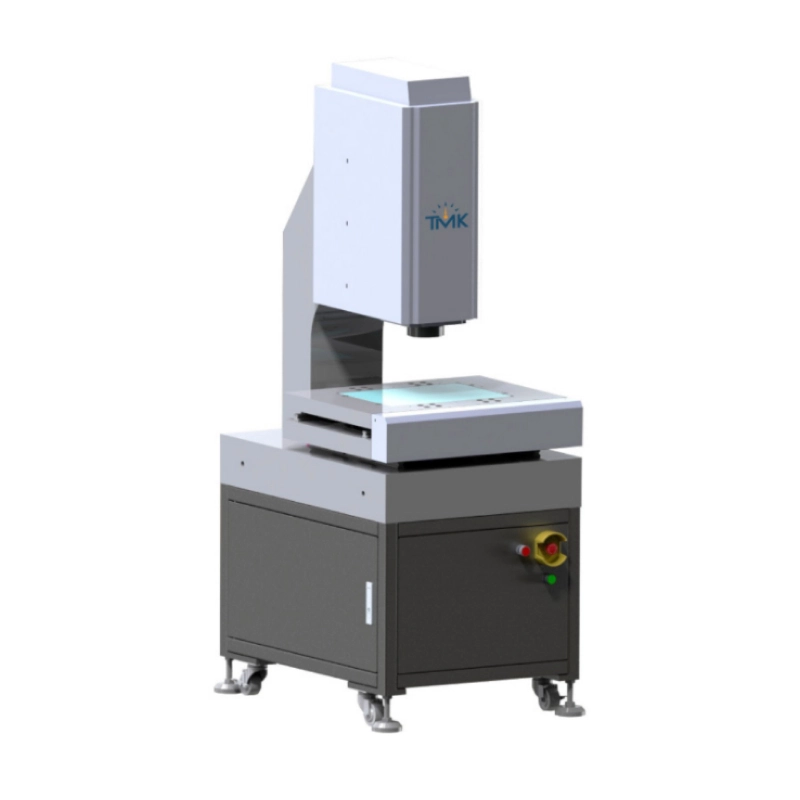

Automatic vision measuring systems VMS-300A
Automatic vision measuring systems VMS-300A are ideal when quick measurements for quality control are needed. The machine is able to work with touch probes…
- X-Y-Z stroke: 300x200x200mm
- Granite size: 580x360mm
- Stage glass size: 370×270 mm
- Max loading weight: 20kg
- Overvation & image:
– CMOS 1/2’’ GIGE color digital camera (1.3MP)
– Zoom lens: 0,.7-4,5X
– Monitor manification: 40-250X
– TMK 3D Automatic Measurement sorfware - X/Y Linear accuracy: 2.0 ± L/200 μm
- Z accuracy: 5 + L/100 μm
- Working distance: 90mm
- View field: 1.2-8.2mm
- Ilumination unit:
– White LED 3 ring 8 region programmable light source
– White LED 4 ring and 8 area programmable light source - Instrument power sources: AC220/50Hz
- Dimensions: 840x630x1770 mm
- Net weight: 320 kg
