- Edge detector: not included
- Projector screen:
- Diameter: Φ600mm
- Rotation range: 0°~360°
- Resolution: 1’ or 0.01°
- Reference lines: cross-hairs
- Lens:
- Magnification: 5X (optional); view field: Φ120mm; working distance: 242.8mm
- Magnification: 10X (included); view field: Φ60mm; working distance: 143.2mm
- Magnification: 20X (optional); view field: Φ30mm; working distance: 85.5mm
- Magnification: 50X (optional); view field: Φ12mm; working distance: 92mm
- Magnification: 100X (optional); view field: Φ6mm; working distance: 48.5mm
- Magnification accuracy: ±0.08%
- Image: erect image
- Stage:
- Metal stage size: 404x265mm
- Glass stage size: 207x170mm
- X-Y stage travel: range: 200x100mm; resolution: 0.5 μm; accuracy: (3 L/50) μm, L is the measuring length in mm
- Z(focus) travel range: 50mm
- Max. load capacity: 5kg
- Illumination:
- Contour illumination: 24V/150W halogen lamp, brightness is adjustable
- Surface illumination: 12V/150W halogen lamp (with 2 fibers), position is adjustable
- Data processing unit:
- Display: X-Y stage travel, screen rotation
- Ouput: RS232C, USB (data output to Excel and CAD)
- Function:
- Measure coordinate of point
- Measure coordinate of line
- Measure center coordinate, radius of circle with three points
- Measure distance between 2 objects
- Measure angle with four points or two lines
- Coordinate transform
- Choose measurement object automatically according to the selective point and display the result
- Advanced function: programming for batch measurements
- Power supply: 110/220V, 50/60Hz
- Dimension (LxWxH): 1200x1140x1940mm
- Weight: 360kg

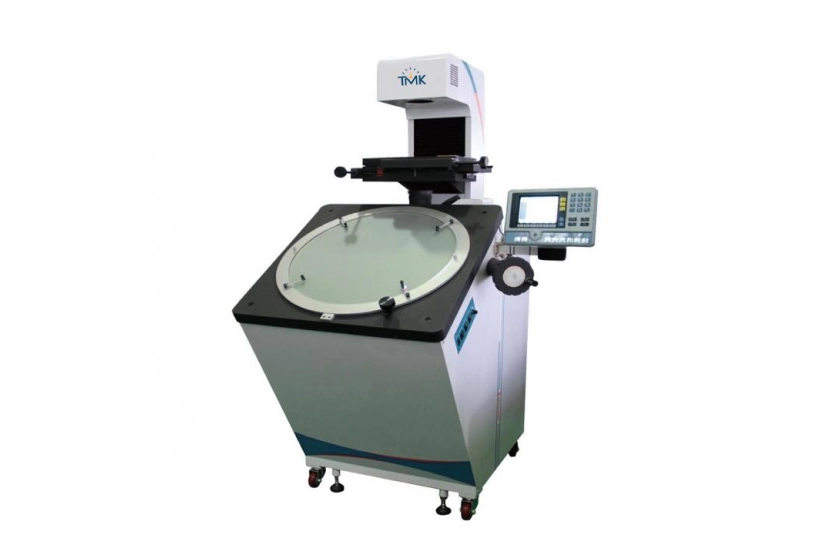

Profile Projector (5X~100X; ±0.08%; not included edge detector) TMP-6000V
Profile Projector (5X~100X; ±0.08%; not included edge detector) TMP-6000V efficiently performs measurements, inspections and observations by projecting an image of a test workpiece …
