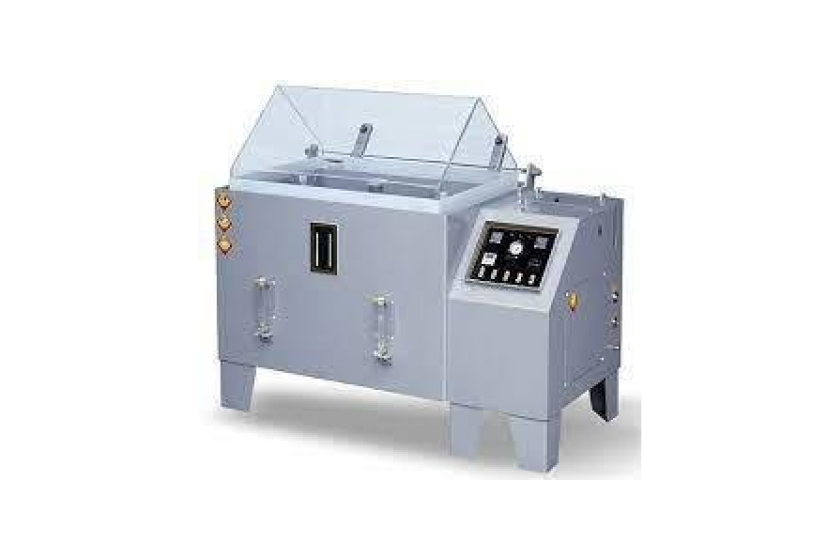

Name: Salt spray tester TMK SPT-120L | TMK Technologies
SKU: SPT-120L

Using a plastic precision nozzle and conical spray device, the salt spray drops evenly and rapidly, the nozzle has a long working life and does not crystallize
The spraying time can be controlled internally without external time relay
The flow rate of salt water and compressed air pressure is regulated by a flow meter and pressure regulating valve to create a uniform salt spray settlement.
Manual water-adding system can automatically replenish when the water level is insufficient to ensure uninterrupted testing.

Capacity (L): 600
External size WxHxD (mm): 11900x1100x1400
Inner size WxHxD (mm): 1200x1000x500
Temperature inside chamber: Salt test (NSS ACSS) 35 ± 1°C, Corrosion Test (CASS) 50 ± 1°C
Temperature of pressure barrel: Salt test (NSS ACSS) 47 ± 1°C, Corrosion Test (CASS) 63 ± 1°C
Salt test capacity (L): 40
Temperature range: +10 °C ~ 55 °C
Temperature uniformity: ≤±2 °C
Compressed air pressure: 1.00 ± 0.01 kgf/cm²
Salt fog settlement: 1.0~2.0ml/80 cm².h
Spray mode: Continuous or intermittent spray optional
Power: AC 220 V; 50 Hz

Salt spray tester TMK SPT-120L
