- It has a marble base, columns and countertops. Good stability and strong structural rigidity.
- Two-layer workbench structure reduces mechanical errors and ensures X and Y horizontal motion accuracy.
- Marble work surface, good flatness, good hardness, not easy to scratch, durable.
Vision measuring systems professional manufacturer TEC-5040H
Vision measuring systems professional manufacturer TEC-5040H has two-layer workbench structure reduces mechanical errors and ensures X and Y horizontal motion accuracy…c
- Range: 400×300×200 mm
- Stage size: 700×500 mm
- Glass stage size: 528×428 mm
- Accuracy X,Y/Z: X.Y ≤ (3,0 L / 200) μm ( L: (L is the measured length unit mm)
- Resolution X,Y/Z: 0,5 μm
- Objective: 0.7X – 4,5X (zoom)
- Working distance: 90mm
- Video magnification: 40-250X
- Camera: High resolution camera (CCD)
- Lighting system: The ring surface light source and the transmission light source are LEDs and the brightness is adjustable.

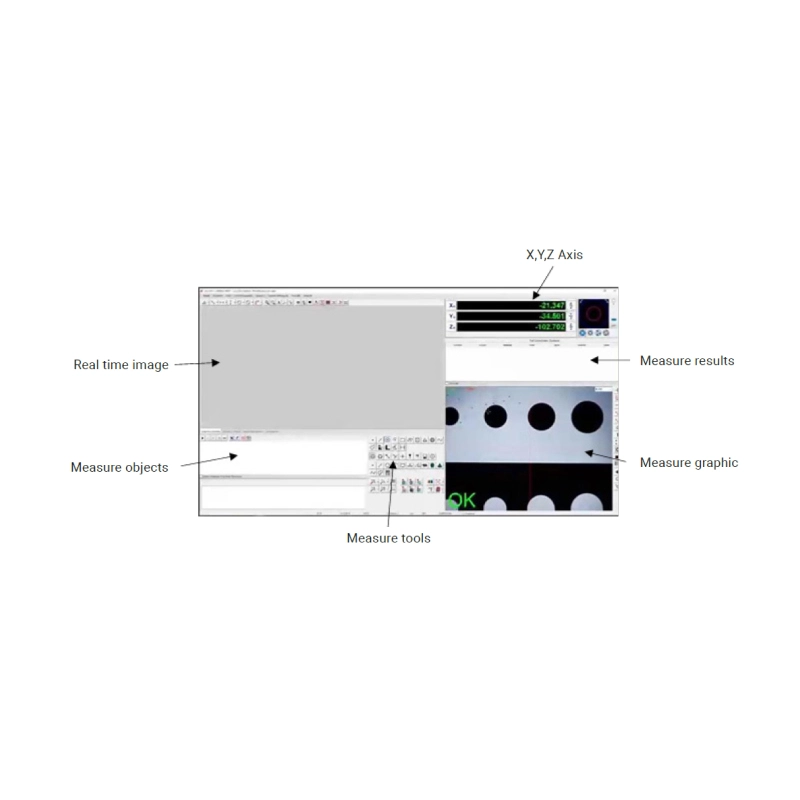

- Operation system: Win 7/8/10…
- Driver method: Manual
- Supply: 220V (AC) / 50Hz
- Dimension (L×W×H): 1040x740x980 mm
- Max.weight of workpiece: 20kg
- Weight: 297 kg
- Standard delivery: Main unit × 1, PC × 1, USB × 1, Key × 1, CCD × 1, Scale × 1, Inspecs certificate.
