- Measure hardness of thin and small matterials
- Digital display
- Converted to more hardness scales
- Automatic loading/unloading/drew to save time
- Built-in printer on machine
- According to ISO 6507

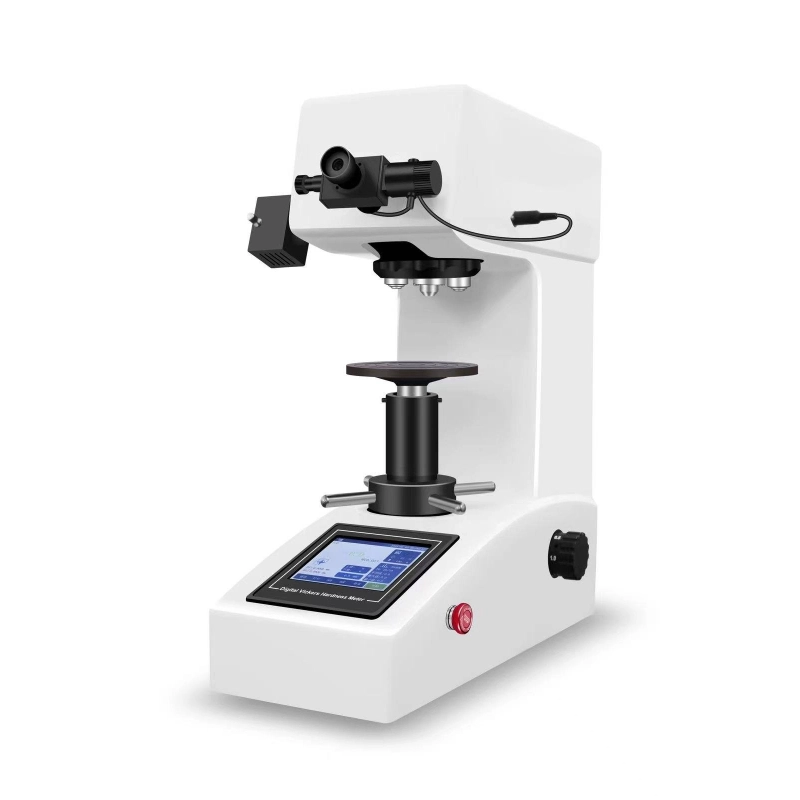

Digital vicker hardness tester VHT-50A
Digital vicker hardness tester VHT-50A can measure hardness of thin and small matterials with automatic loading/unloading/drew to save time…
- Turet: Automatic
- Test force: 0.3, 0.5, 1, 3, 5, 10, 30, 50 kgf
- Min.test unit: 0.025μm Electronic measuring eyepiece
- Exchange scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
- Measuring range: 8~2900HV'
- Test force application method: Automatic (loading, loading and unloading)
- Test microscope magnification: 100X (Observation) 200X (test)
- Test power and load retention time: 1~60s
- X-Y test table: Size: 100*100mm, Maximum movement: 25*25mm
- Data output: LCD display readout, built-in printer and RS-232 interface
- Max height of specimen: 90mm
- Distance from the center of the head to the outer wall: 95mm
- Power supply: AC220V 5%, 50-60Hz
- Dimensions: 320*500*570mm
- Standard delivery:
- 1 x Main unit
- 1 x Slice holder
- 1 set x 10X and 20X objective
- 1 x Vice
- 1 x Vicker indenter
- 1 x Cylinder holder
- 1 set x Hardness block (high and low value)
- 1 x Product certificate and manual
