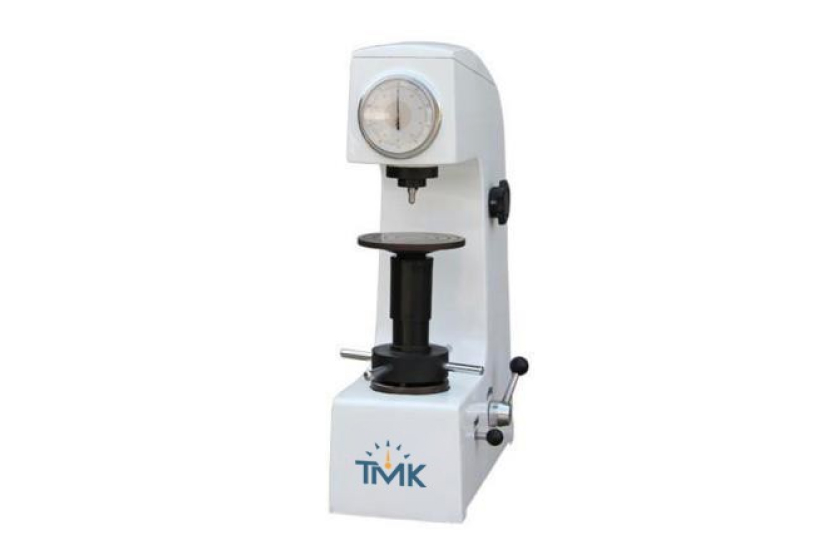

Name: Manual Rockwell hardness tester TMK TMK-160L | TMK Technologies
SKU: TMK-150L

TÍNH NĂNG:

ỨNG DỤNG:

Suitable for hardening, tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.
It is widely used in industrial and mining enterprises and laboratories of colleges and universities.

Rockwell scale: HRA, HRB, HRC, HRD, HRF, HRG
Dial indicator scale: C: 0 ~ 100; B: 30 ~ 130
Max height of specimen:
- 170 mm (without lead screw protection cover)
- 100 mm (with lead screw protection cover)
Distance from indenter center to machine wall: 128 mm
Resolution ratio: 0.5 HR
Preliminary testing force: 10 kgf (98.07 N
Total test force: 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N)
The method of force application: Manual
Dimension: 500×225×640 mm
Net weigh: 65 kg
Standard delivery:
- Main unit: 1 pc
- Diamond rockwell indenter: 1 pc
- 1/16 inch ball indenter: 1 pc
- 1/16 inch steel ball: 5 pcs
- Standard hardness block (HRA, HRB, HRC): 5 pcs
- Screwdriver: 1 pc
- Dust cover: 1 pc
- Small test anvil: 1 pc
- Big test anvil: 1 pc
- V-sharp test anvil: 1 pc
- Product certificat: 1 pc
- Operation manual: 1 pc

Manual Rockwell hardness tester TMK TMK-160L
