- It applies to a wide range of materials for tension, compression, bending, shearing, and low-cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes, and training centers, etc.

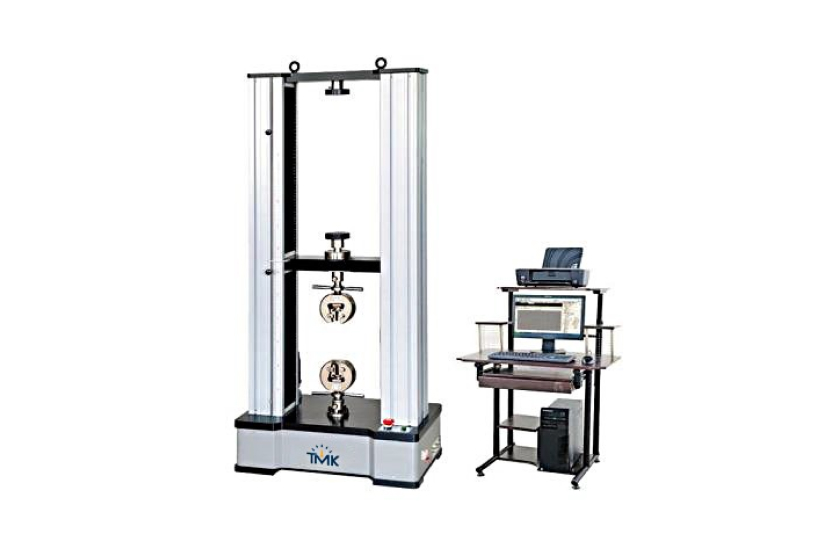

Electric universal testing machine TMK ETM-20B
Electric universal testing machine TMK ETM-20B applies to many materials for tension, compression, bending, shearing, and low-cycle tests. Suitable for metal..
- Max force: 20kN
- Class: 0.5
- Test force range: 0.2 - 100%FS
- Force accuracy: ±0.5% of reading
- Force resolutions: 1/500.000 Max test force
- Deformation measurement range: 0.2 - 100%FS
- Deformation measurement accuracy: ±0.5% of reading
- Crosshead travel*: 10-1100 (include fixture)
- Speed: 0.01-1000mm/min
- Power: AC220V, 50/60Hz
- Weight: 300kg
- Can be customized according to test requirements
- Standard delivery:
- Main unit: 1 pc
- Control box: 1 pc
- Computer: 1 pc
- TMK Software: 1 pc
- Standard fixture: 1 pc
- USB cable: 1 pc
