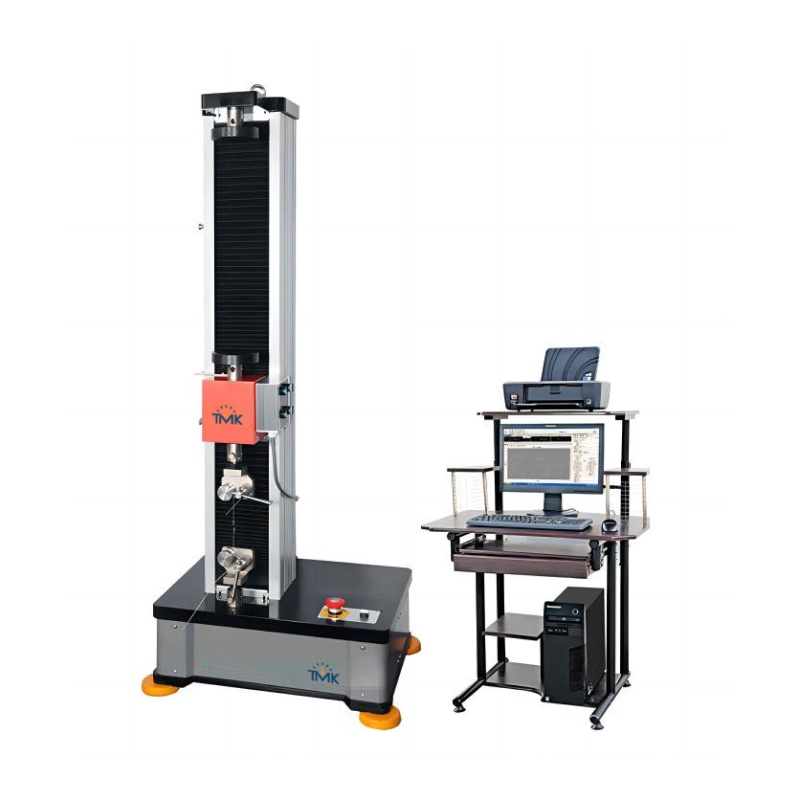

Name: Single column computer controls electromechanical universal testing machine ETMC-500N | TMK Technologies
SKU: ETMC-500N

Adopt single column structure, lower for tensile, upper for compression, double space. The beam is step less lifting, light but rigid.
Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
The shield plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
Adopt bolt type grip installation, make the grip replace easier.

Load capacity: 500N
Calibration standard: Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
Testing load accuracy: ±0.5%
Testing load range: 0.4%-100%FS
Load resolution: 1/500,000FS
Deformation measuring range: 0.2%—100%FS
Deformation accuracy: ≤±0.5%
Deformation resolution: 1/±500000FS of the max deformation
Test control mode: Three closed loop control, stress, strain and displacement
Position accuracy: Within ±0.5% of the value
Displacement resolution: 0.01mm
Crosshead speed range: 0.001-500mm/min
Crosshead speed accuracy: ≤±0.2%
Constant force control range: 0.001%~5% FS/s
Constant force control accuracy: When the rate is < 0.05% FS/s, it is within ±2% of the set value; when the rate is ≥ 0.05% FS/s, it is within ±0.5% of the set value;
Constant deformation control range: 0.005%~5%FS/s
Constant deformation control accuracy: When the rate is < 0.05% FS/s, it is within ±2% of the set value; when the rate is ≥ 0.05% FS/s, it is within ±0.5% of the set value;
Crosshead travel: 900mm
Max. tensile testing space: 600mm
Compression platen: Ф100mm
Power supply: AC220V±10%, 50Hz/60Hz

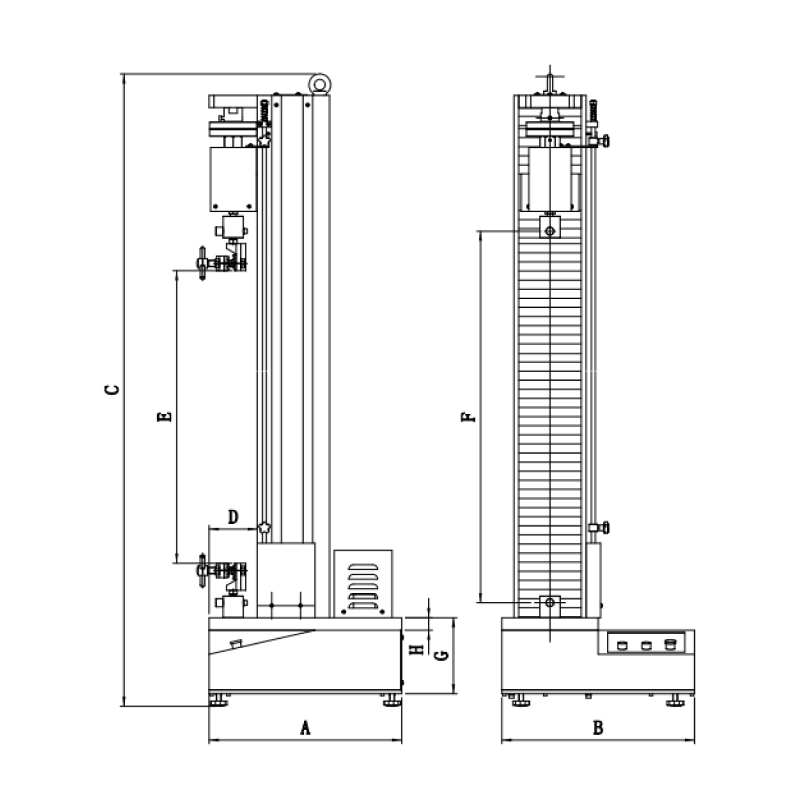

Overall dimensions (L*W*H): 520*400*1340mm
Weight: 110kg
Note:
- Extra wide and/or extra height frames are available.
- Power supply system is completely customizable.
- Tensile space, test width and speed is completely customizable.

Single column computer controls electromechanical universal testing machine ETMC-500N
