- A metallographic Specimen Grinding and Polishing Machine suitable for metallographic specimen pre-grinding, grinding, and polishing operation, is the necessary equipment to make metallographic specimens.
- It’s equipped with a cooling device, used to cool the sample when grinding, to prevent the sample from overheating and destroying the metallographic organization.
- The key in English and microprocessor control. The left disc is used for grinding and the right disc is used for polishing, so 2 people can operate at the same time.
- Accessories
- Main unit
- Polishing cloth
- Sandpaper
- Polishing & Grinding discs
- Water inlet pipe
- Water outlet pipe
- User manual & Certificate
- Option
- Magnetic disk Φ200mm,Φ230mm or Φ250mm
- Anti-stick disk Φ200mm, Φ230mm or Φ250mm
- Sandpaper 320#, 600#, 800#, 1200#
- Polishing cloth: Silk velvet, canvas, woolen cloth
- Diamond polishing agent W0.5𝜇m, W1𝜇m, W2.5𝜇m

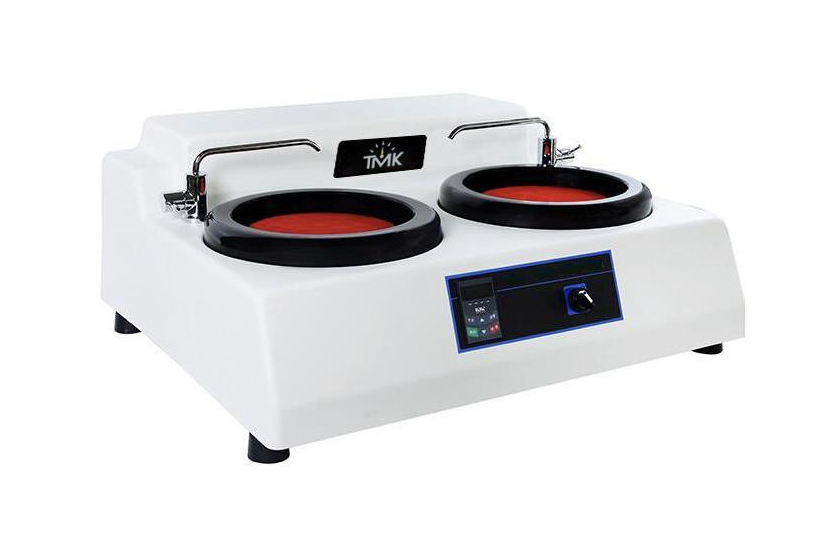

Metallographic grinding and polishing machine TMK GPM-203A
Metallographic grinding and polishing machine TMK GPM-203A is suitable for metallographic specimen pre-grinding, grinding, and polishing operations,…
- Structure: Dual disk and single control
- Grinding and polishing disc diameter: Φ203mm Φ230 or Φ250mm (optional)
- Grinding speed: 50 ~ 1000 rpm
- Polishing speed: 50 ~ 1000 rpm
- Sandpaper Diameter: Φ200mm
- Power supply (Voltage/Frequency/Power): 220V/50Hz/370W
- Dimension (DxWxH), mm: 710×680×330
- Net Weight: 42 kg
