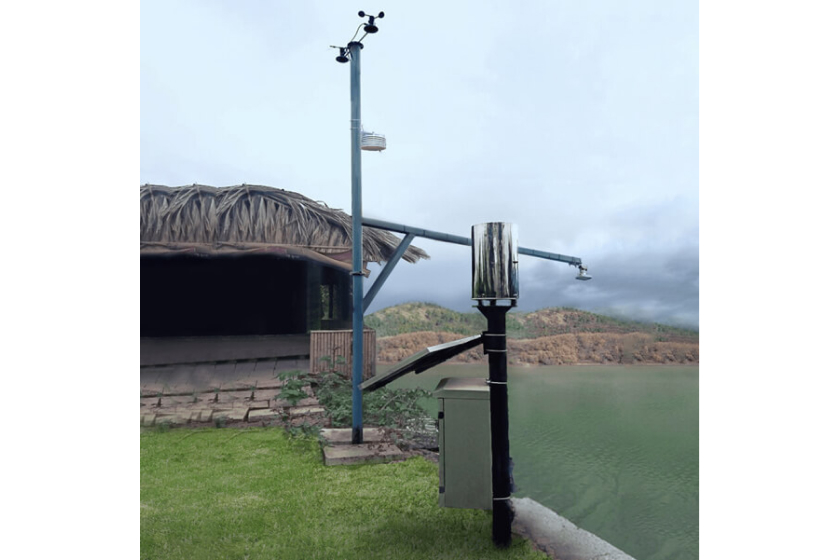

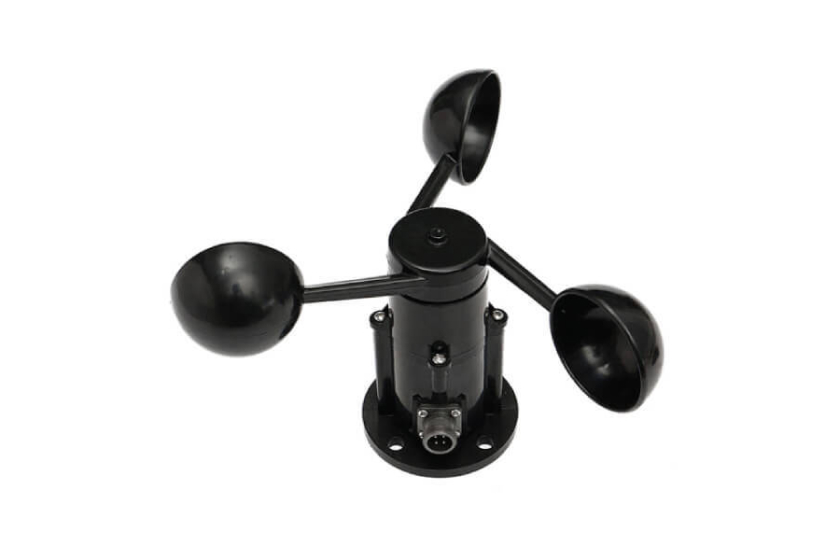

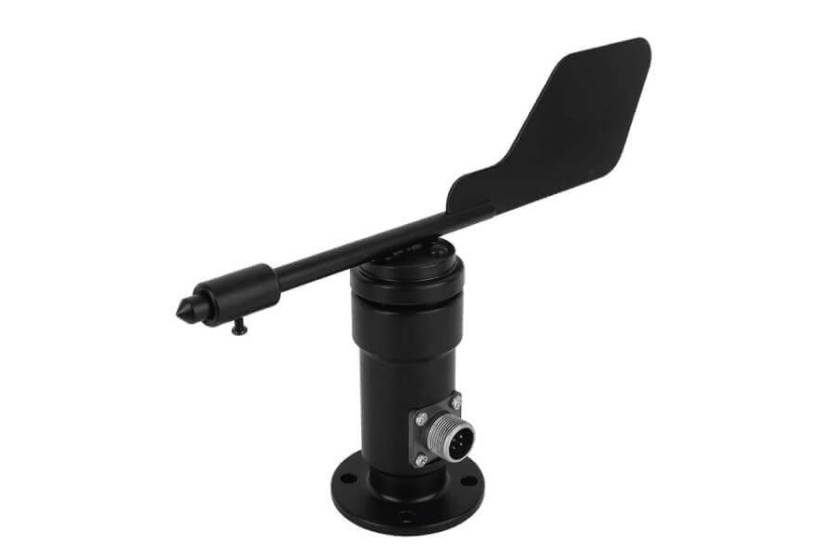

- TMK-WS weather station is a combination of sensors: Rain flow sensor, wind speed sensor, wind direction sensor, water level sensor, temperature sensor,… Temperature data High precision is stored on-site, and transmitted to TMK data center. Monitoring data of the TMK-WS weather station system can be accessed from anywhere using devices with Internet access, such as computers, smartphones, and tablets.
Weather measuring station TMK TMK-WS
Weather measuring station TMK TMK-WS high precision, combination of rain flow, wind direction and speed, water level and temperature sensors…
- The DAQ unit processes sensor signals
- Memory: 16 GB
- Connect via Internet: GPRS, EDGE, 3G, 4G
- Tracking data: Via Website

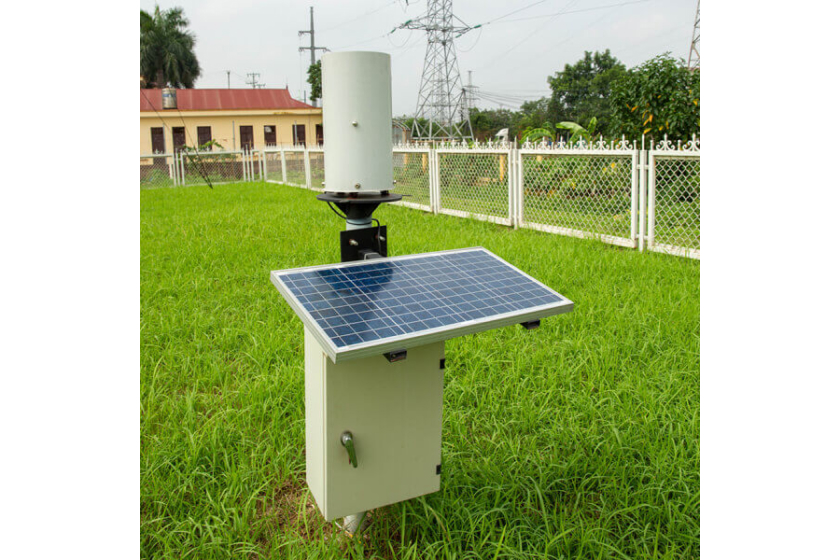

- Solar battery power: 35 W
- Power source: Lead-acid Battery 12VDC/ VAC 220V
- Power consumption: 600mW
- Operating time off the grid: >= 3 months
- Sampling frequency (Data measurement range): 10 seconds - 10 minutes
- Signal sending frequency (Data collection interval): 2 minutes - 2 hours (customized)
- Optional accessories:
- Flip-flopping rain gauge sensor: TMK-TBRG-100
- 1.5m Rain gauge base: TMK-TBRG-100-BASE
- DAQ sensor signal processing unit: TMK-WS-DAQ100
