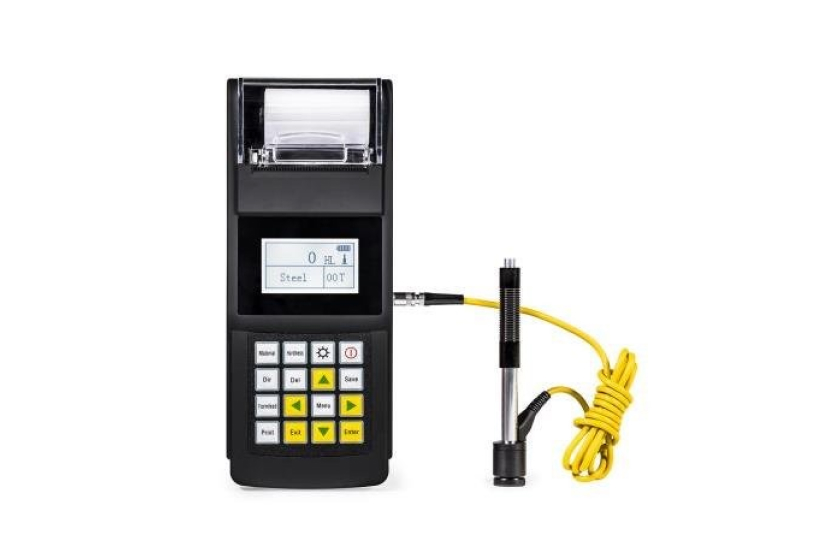

Name: Portable hardness tester TMK TMK-140C | TMK Technologies
SKU: TMK-140C

With a built-in thermal printer
PC Software for data transmission, analysis, and measurement reports printing
Direct calibrate on HL, HRC, HB, and freely switch to 6 different hardness scales
Test at any angle and direction, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Rechargeable Li-ion battery
Meet or exceed the standards of ISO 16859
The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
Mechanical or permanent assembly components have been installed, the test space is very narrow and requires the original record of regular test results
Large work-piece within a wide range of more rapid test measurement sites.

Measuring range: (170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6- 102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameters: HL, HRC, HRB, HRA, HS, HB, HV
Accuracy: ±6HLD/± 1.5HRC
Printer: Build-in high-speed thermal printer
Battery: Rechargeable Li-ion battery
Operating temperature: -20C~ 60C
Impact device type: D, DC, DL, D 15, G, C, E
Standard configuration: Main unit, impact device type D, calibration block, power adapter, cleaning brush, small supporting ring, operation manual, certificate, paper of printer.
Overall dimension (mm): 230×86×46mm
Net Weight (full box): About 7kg
Requirements of the test piece
- The weight of the test piece ≥ 2kg.
- The thickness ≥ 25mm.
- The surface roughness ≤ 2.0 μm Ra.

Portable hardness tester TMK TMK-140C
