- Load frame: The frames all incorporate human factor considerations in the design to ensure safety, reduce
operator fatigue, and provide the highest level of flexibility. Extremely robust crosshead guidance is incorporated
in all frame designs providing the highest level of lateral crosshead stiffness. - High accuracy: The preloaded precision ball-screw with high speed & low noise ensures high speed and position
measurement accuracy and less noise. - High stiffness frame: The load frame is with 4 columns and heavy duty pre-loaded bearings. Preloaded ball screws,
precision guidance columns, and a symmetrical drive system improve frame stiffness and alignment - Safety features: The testing machine stops automatically when the change in the test force exceeds a specified
value during operations. - Over-travel limits: Dual over-travel limits, located on the front console, help prevent crosshead overshooting and
sensor overloads. A graduated rule along the column can be used to preset these limits to specific distances.

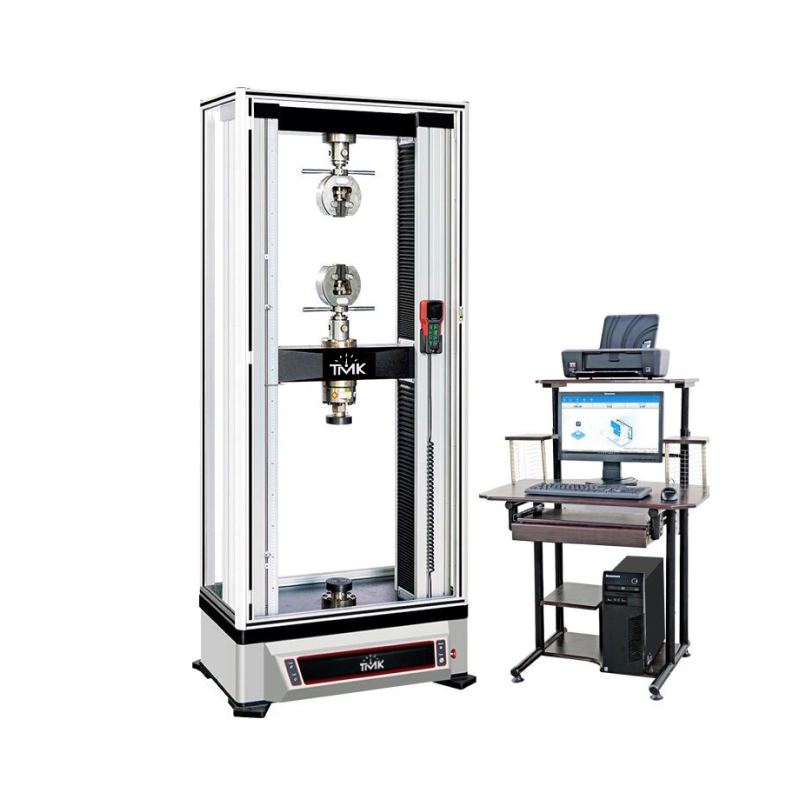

Computer control electromechanical universal testing machine ETM-200A
Computer control electromechanical universal testing machine ETM-200A has high accuracy,high stiffness frame, safety features, over-travel limits…
- Load capacity: 200kN
- Calibration standard: Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
- Testing load accuracy: ±0.5%
- Testing load range: 0.4%~100%FS
- Load resolution: 1/500000FS
- Deformation measuring range: 0.2%~100%FS
- Deformation accuracy: ≤±0.5%
- Deformation resolution: 1/500000FS of the max deformation
- Test control mode: Three closed loop control, stress, strain and displacement
- Displacement accuracy: Within ±0.5% of the value
- Displacement resolution: 0.04μm
- CONTROLS PARAMETER:
- Constant force control range: 0.001%~5%FS/s
- Constant force control accuracy: When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;
- Constant deformation control range: 0.005~5%FS/s
- Constant deformation control accuracy: When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;
- Crosshead speed range: 0.001~500mm/min
- Crosshead speed accuracy: Within ±0.5% of the value
- MAINFRAME PARAMETERS:
- Testing space (Crosshead Travel): 1100mm
- Max. Tensile Testing Space: 650mm
- Test width: 550mm
- Overall dimensions: 1108x798x2450mm
- Weight: 1800kg
- Power supply: AC220V±10%,50Hz/60Hz (1kW suitable within <100kN and 2.5kW suitable with >200kN)
