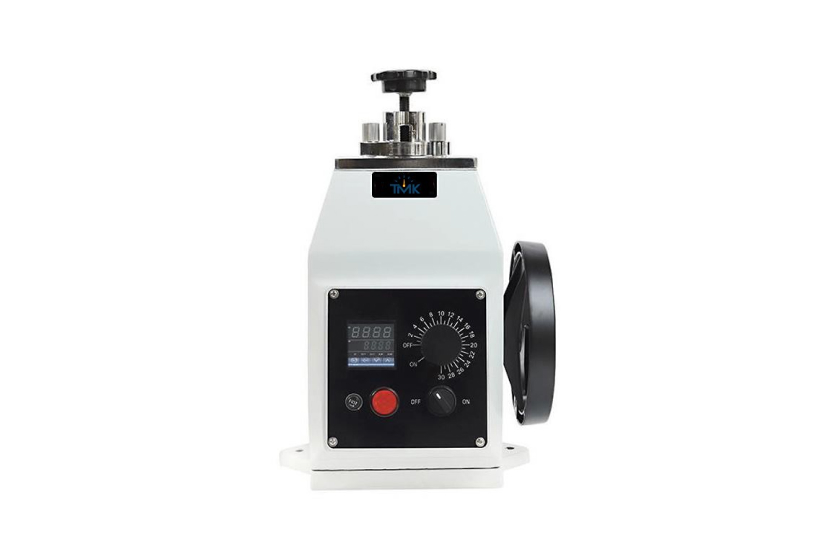

Name: Manual metallographic mounting press TMK MMP-45 | TMK Technologies
SKU: MMP-45

Mainly composed of cylinder liner, heating jacket, upper cover, upper mold, lower mold, screw rod, bevel gear, hand wheel, spring, limit switch, temperature controller, timer, and other parts;
It is used for hand-cranking the hand wheel, and its force passes the bevel gear, screw rod, and other parts to make the lower mold move upward;
The additive material being squeezed and filled, and the subsequent force squeezes the spring;
When the spring is squeezed to the limit switch position, the pressure holding indicator lights up;
Manual Metallographic Specimen Mounting Press suitable for the thermo-hardening plastic pressing of the small metallographic specimen which is not idiomorphic or hard to take.
After forming, it will be very easy to process the grinding, and polishing of the specimen and it is also convenient to process measuring of metallographic structure under a metallographic microscope.
The machine may work stably under the following working conditions:
- The temperature of the surrounding medium cannot be less than10 ℃ and more than 40℃
- The relative humidity of air should be no more than 85% (20 ℃)
- The voltage fluctuation should be no more than 15%
- There should be no obvious vibration source around
- There should be no current-conducting dust, explosive and corrosive air

Manual metallographic mounting press TMK MMP-45
