- A Metallographic Specimen Cutting Machine can be used to cut various metal and non-metal materials to get specimens and observe the metallographic or lithofacies structure.
- The equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic or lithofacies structure deforming of the specimen because of heating influence.
- This machine features easy operation and reliable safety. It is the necessary specimen-preparing instrument for use in factories, scientific research institutes, and laboratories of colleges.
- Quick clamping vice.
- LED Lighting system
- 50L water cooling system
- Fully enclosed stainless steel structure

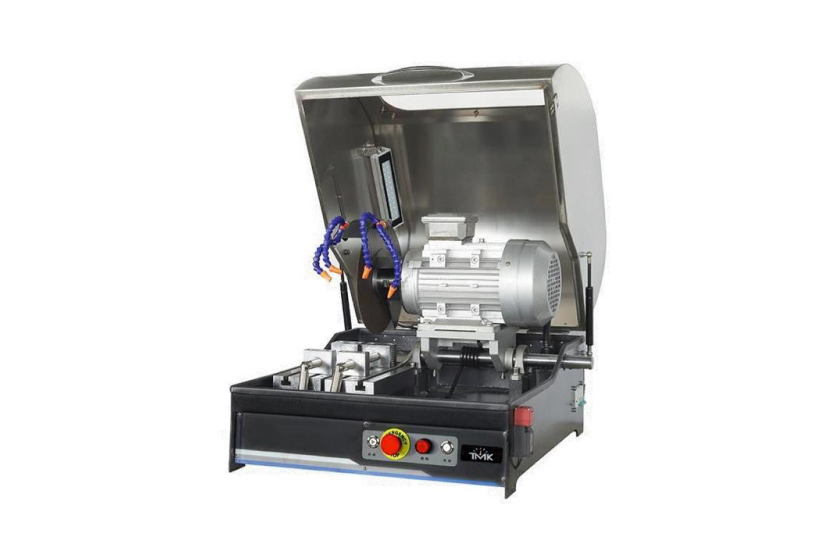

Manual metallographic sample cutting machine TMK SCM-100
Manual metallographic sample cutting machine TMK SCM-100 had a Quick clamping vice, LED lighting system, 50L water cooling system,…
- Max cutting capacity: 100 mm
- Cutting method: Manual/chop
- Cooling method: T-slot work table, dual driver vises, outside cooling system
- Structure: Desktop
- Sample holder: Fixed
- Rotation speed: 2800r/min
- Cutting table size: 230x240mm
- Wheels size: 350×2×32mm
- Power: 3kW
- Power supply: 380V, 50Hz
- Dimension (DxWxH), mm: 680×800×820mm
- Net weight: 130kg
