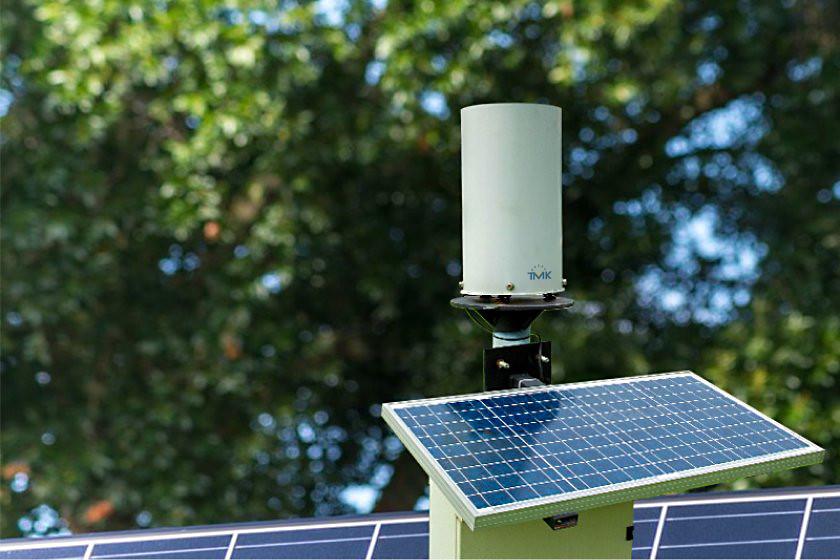

- The station has a sturdy design, suitable for the diverse and harsh weather. High-precision data is stored on-site, and transmitted to TMK data center. Monitoring data of the TMK-TBRG rain gauge station can be accessed from anywhere using devices with Internet access, such as computers, smartphones, and tablets.
Automatic tipping bucket rain gauge TMK TMK-TBRG
Automatic tipping bucket rain gauge TMK TMK-TBRG, sturdy design, suitable for the diverse and harsh weather, high-precision…

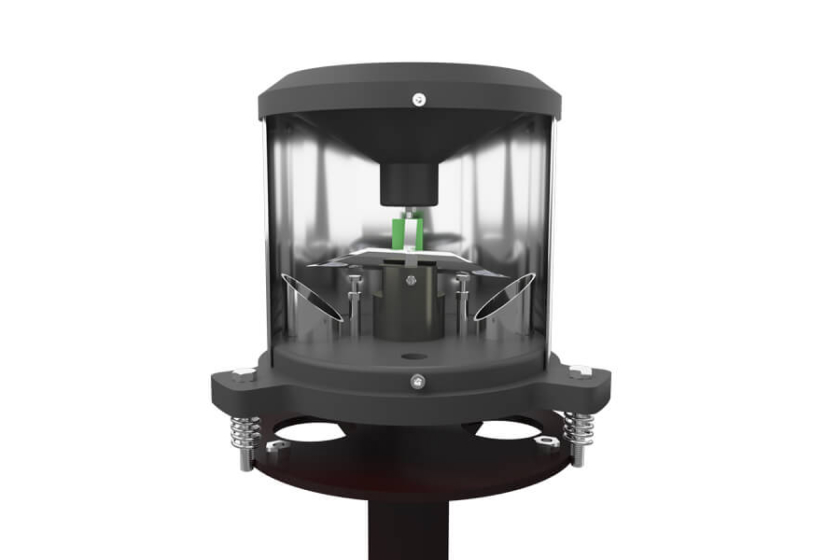

- Rain gauge sensor TMK-TBRG-100
- Outer shell material: Stainless steel 304
- Resolution: 0.2 mm
- Accuracy:
- ≤ 0.4mm when rain flow ≤ 10mm/h
- < 4% when rain flow > 10mm/h
- Diameter of funnel: 200mm (WMO Guideline No. 8)
- Material of collecting funnel: Anti-adhesion microplated steel
- Insole material: UV resistant POM
- Size of tilting rain gauge sensor: 300*300*255 mm
- Weight of tilting rain sensor: 9 kg
- Sensor type: Flush sensor with flow regulating siphon
- Signal conversion: Magnetic switch, 20 years lifespan
- Maximum rating: 250mm/h
- Working temperature: -10 ~ 65°C
- Working humidity: 0 - 100%
- The DAQ unit processes sensor signals
- Memory: 16 GB
- Connect via Internet: GPRS, EDGE, 3G, 4G
- Tracking data: Via Website

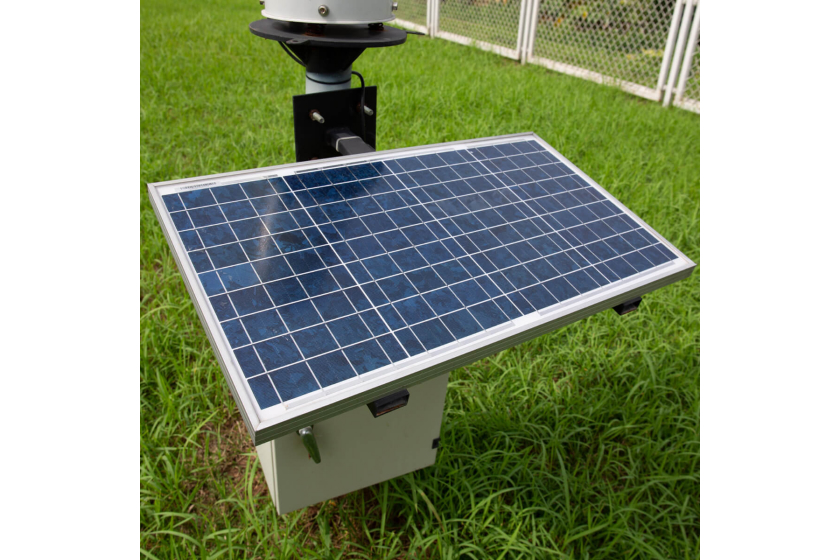

- Solar battery power: 35 W
- Power source: Lead acid Battery 12VDC/VAC 220V
- Power consumption: 600mW
- Sampling frequency (Data measurement range): 10 seconds - 10 minutes
- Signal sending frequency (Data collection interval): 2 minutes - 2 hours (customized)
- Optional accessories
- Flip-flopping rain gauge sensor: TMK-TBRG-100
- Rain gauge base 1.5m: TMK-TBRG-100-BASE
- DAQ sensor signal processing unit: TMK-WS-DAQ100
