- Parameters: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, RC, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax
- Range:
- X axis: 17.5mm
- Z axis: 640μm (-320μm~320μm)
- Accuracy: ±10%
- Resolution (Ra): 0.001μm
- Probe
- type: inductive
- stylus radius/angle: 5µm/90°
- stylus material: diamond
- Measuring force: 4mN
- Measuring unit: μm/pin
- Cut off: 0.25/0.8/2.5mm
- Number of cut-offs: 1-5
- Traverse speed: 0.135mm/s, 0.5mm/s, 1mm/s
- Memory: 100 measurement results
- Output: bluetooth and USB
- Power: built-in rechargeable battery
- Dimension (LxWxH): 158×64×52mm
- Weight: 400g

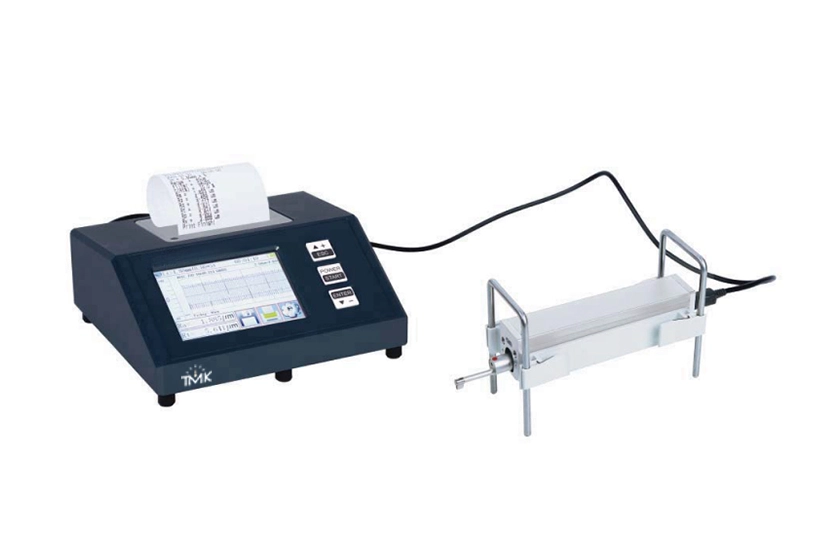

Roughness Tester (X: 17.5mm, Z: 640μm TKR-320
Roughness Tester (X: 17.5mm, Z: 640μm TKR-320 is a portable measuring instrument for determination of surface roughness according to Ra, Rz, Rq and Rt…
